8Lines Wire Anti-rust Galvanized Concrete counterweight mesh for Subsea Gas & Oil Pipeline

Brand Name : H&F

Model Number : HF-250908

Certification : ISO-9001

Place of Origin : Hebei, China

MOQ : 25500 Square Meters

Price : USD2.98/M2~USD3.65/M2

Payment Terms : T/T,Western Union

Supply Ability : 66000 Square Meters per month

Delivery Time : According to order quantity

Packaging Details : 6 rolls per bundle or as customers' requirements

Product Name : 8Lines Wire Anti-rust Galvanized Concrete counterweight mesh

Key word : Galvanized Concrete counterweight welded mesh

Material : Hot dipped Galvanized wire

Surface treatment : hot dipped galvanized

Zinc coated : 70gm²~300g / m² or custom

Wire diameter : 2.0mm-2.7mm

Hole Size : 25.4mm x 67mm

Middle line wire pitch : 25.4 mm

Cross wire pitch : 67 mm or 92.4 mm

Hardness range : 485N/mm2~650N/mm2

Line wire quantity : 6lines or 8lines,10Lines

Exposed Wire Edge : ≤ 2.5 mm

Length : 140m,145m,280m etc

Width : 190.5mm

Both sides line wire pitch : 25.4 mm or 50.8 mm

Roll Diameter : 700mm~1100mm

Load container way : In bulk or in pallet

Sample : Supply free sample to test

Contact Now

8Lines Wire Anti-rust Galvanized Concrete counterweight mesh for Subsea Gas & Oil Pipeline

Product Specifications

Attribute	Value
Product Name	Galvanized Concrete counterweight mesh
Material	Hot dipped Galvanized wire
Wire diameter	2.0mm-2.7mm
Hole Size	25.4mm x 67mm
Surface treatment	Hot dipped galvanized
Zinc coated	70gm²~300g/m² or custom
Line wire quantity	6lines, 8lines or 10lines
Middle line wire pitch	25.4 mm
Exposed Wire Edge	≤ 2.5 mm
Cross wire pitch	67 mm or 92.4 mm
Hardness range	485N/mm²~650N/mm²
Width	190.5mm
Length	140m, 145m, 280m etc
Both sides line wire pitch	25.4 mm or 50.8 mm
Load container way	In bulk or in pallet
Roll Diameter	700mm~1100mm
Sample	Supply free sample to test

Product Description

Galvanized Concrete counterweight mesh is specially designed for gas pipeline applications. Manufactured from new galvanized wire with diameters ranging from 1.8mm to 2.7mm, it features strong and uniform hole sizes.

Available with 6, 8, or 10 line wires, the roll length can be customized to client requirements. With high tensile strength, anti-rust surface, and long service life, it is widely used in offshore gas pipeline projects.

Product Different types can choose:

8Lines Wire Anti-rust Galvanized Concrete counterweight mesh for Subsea Gas & Oil Pipeline

Product Advantages

High grade quality
New material wire
Uniform hole
Standard hole size with uniform design
Standard wire diameter and roll width
Strong welded construction
Anti-rust and anti-corrosion properties
High tensile strength
Sufficient roll length
Long service life
Easy to use and store
Strong packaging suitable for shipping

Packaging Options

2, 4, 5, or 6 rolls per bundle
Strong pallet packaging
Strong wooden box packaging
Bulk container loading
Custom packaging available

Application Areas

River Bottom Gas & Oil Pipeline
Everglades Gas Pipeline
Chemical Processing Pipeline
Subsea Gas & Oil Pipeline
Water and Wastewater Pipeline

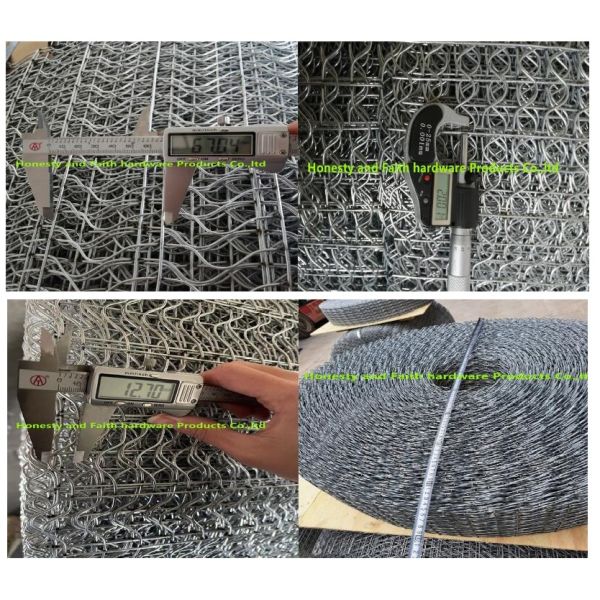

Product Images
